Fabrication of the Latest Generation of Finned Heat Exchangers with Stainless Steel Tubes and Aluminum Fins – A Landmark in Iran’s Process Equipment Industry
Shegeft Afzar, the only manufacturer of specialized finned heat exchangers in Iran, proudly announces the successful completion of fabrication and mechanical assembly of three large-scale high-performance finned heat exchangers. These units represent the latest generation in a strategic production series developed over the past seven years and are now ready for delivery to their final industrial destination.
Key Technical Specifications:
• Overall Dimensions per Unit: Approx. 6500 × 2500 × 2200 mm
• Approximate Unit Weight: 12–14 metric tons
• Tube Bundle:
– Material: Stainless Steel 316L (Seamless)
– Outer Diameter: 16 mm
– Wall Thickness: 1.2 mm

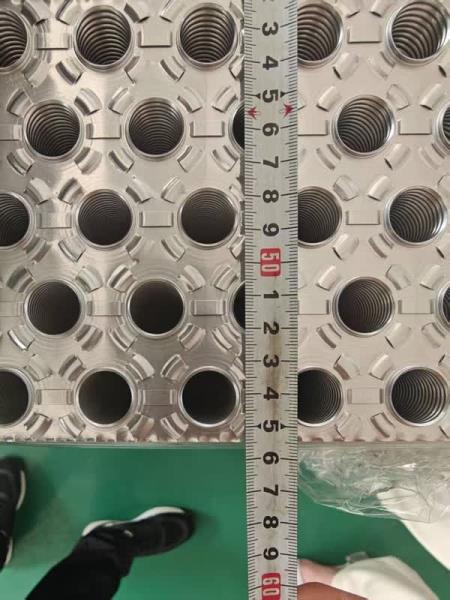

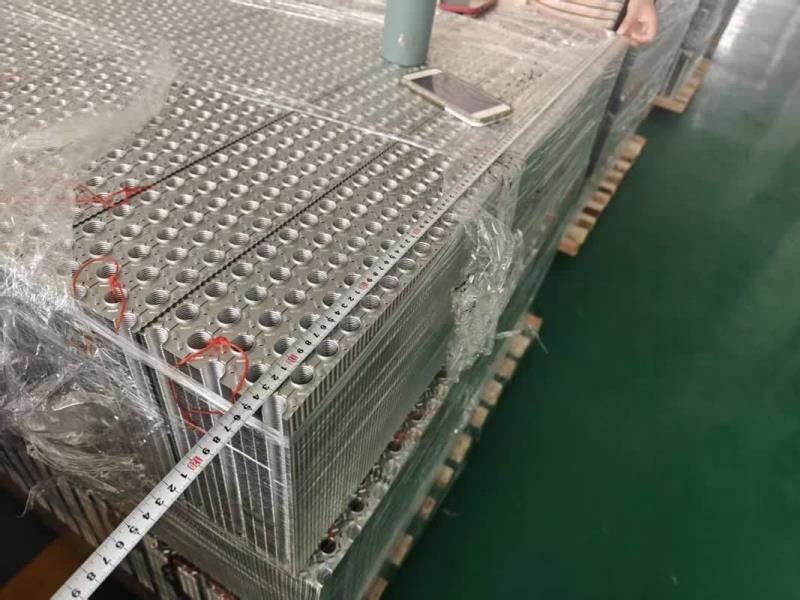

• Fin Plates:
– Material: High-thermal-conductivity aluminum
– Thickness: 0.4 mm
– Connection Method: Precision mechanical tube expansion with ±0.01 mm tolerance
• Design Temperature: Up to 450°C
• Design Pressure: 25 barg
• Thermal Performance Target: Up to 320 W/m²·K
• Applicable Standards: ASME Section VIII, Division 1 and ISO 13706
Engineering Highlights and Technical Challenges:
1. The mechanical expansion of 316L stainless steel tubes into ultra-thin (0.4 mm) aluminum fin plates required high-precision tooling and rigorous process control to prevent deformation or damage during assembly. This was executed using CNC-guided expansion systems and in-house developed calibration methods.
2. The use of thin aluminum fins significantly improves thermal conductivity while reducing unit weight. However, this also imposes strict structural design constraints to ensure mechanical stability under thermal stress, vibration, and pressure cycling.
3. Each unit underwent complete thermal and structural modeling using advanced FEA and CFD simulations. All fabrication steps were conducted under full QA/QC supervision in compliance with petrochemical-grade manufacturing protocols.
Conclusion:
These three units stand as the largest, lightest, and most technically advanced finned heat exchangers ever built in Iran. They reflect Shegeft Afzar’s unmatched engineering capabilities, innovation in process equipment manufacturing, and its strategic role in advancing industrial self-sufficiency in Iran’s oil, gas, and petrochemical sectors.
Shegeft Afzar remains committed to pushing the frontiers of mechanical design and precision manufacturing—delivering solutions that meet global standards with locally developed expertise.
